Serie FOX-SI

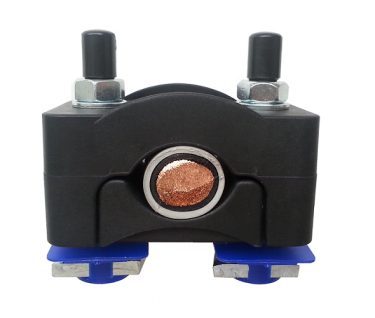

Cable clamp set including Threaded rods
Fast, efficient calculation, procurement and realisation.
The set consists of:
- Desired type of FOX-SI cable clamp
- Threaded rods (on correct length)
- Nuts
- Washers
- Mounting material Galvanised steel; optional Hot Dip Galvanised/ Stainless Steel
- Protective caps for top of threaded rods
- Shortcircuit proof fixation of one (1) single- or multiconductor low-, medium-
or high voltage cable or tube with a diameter between 15 and 170 mm
- Mechanical strength: up to 85,400 N
- All SI models are stackable
- Mounting torque: max. 5 Nm
- Material: High Quality Black Polyamide, Fibreglass-Reinforced
- Temperature range: -40° C to + 135° C
- Excellent mechanical-, heat-, and chemical resistance, halogen free
- Perfect fit due to well-thought-through design
- Equipped with countersunk holes for nut/ bolt head
- Also available as COMPLETE SET including Unistrut channel
- Can also be mounted on Unistrut Racks
- Quick delivery and advise on request!
Type
|
Cable diameter
|
Partnumber
|
FOX-SI Ø 15-24
|
15-24 mm
|
2009-1-015-024
|
FOX-SI Ø 24-38
|
24-38 mm
|
2009-1-024-038 |
FOX-SI Ø 36-52
|
36-52 mm
|
2009-1-036-052
|
FOX-SI Ø 50-75
|
50-75 mm
|
2009-1-050-075
|
FOX-SI Ø 75-100
|
75-100 mm
|
2009-1-075-100
|
FOX-SI Ø 100-130
|
100-130 mm
|
2009-1-100-130
|
FOX-SI Ø 130-170
|
130-170 mm
|
2009-1-130-170
|
