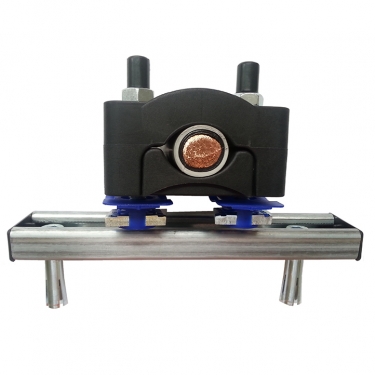

FOX-SI (Single) Series



  • Shortcircuit proof fixation of one (1) single- or multiconductor low-, medium- or high voltage cable or tube with a diameter between 15 and 170 mm
  • Mechanical strength: up to 85,400 N
  • All SI models are stackable
  • Mounting torque: max. 5 Nm
  • Material: High Quality Black Polyamide, Fibreglass-Reinforced
  • Temperature range: -40° C to + 135° C
  • Excellent mechanical-, heat-, and chemical resistance, halogen free
  • Certified according NEN-EN-IEC 61914:2016
  • Perfect fit due to well-thought-through design
  • Equipped with countersunk holes for nut/ bolt head
  • Also available as COMPLETE SET including Unistrut channel
  • Can also be mounted on Unistrut Racks
  • Quick delivery and advise on request!



Type
Cable diameter
Partnumber
FOX-SI Ø 15-24
15-24 mm
2001-4-015-024
FOX-SI Ø 24-38
24-38 mm
2001-4-024-038
FOX-SI Ø 36-52
36-52 mm
2001-4-036-052
FOX-SI Ø 50-75
50-75 mm
2001-4-050-075
FOX-SI Ø 75-100
75-100 mm
2001-4-075-100
FOX-SI Ø 100-130
100-130 mm
2001-4-100-130
FOX-SI Ø 130-170
130-170 mm
2001-4-130-170

Your quotation request has been sent successfully.
Request quote
More options
FOX-SI (Single) Set with threaded rods (galvanized)
FOX-SI (Single) Set with channel nut (galvanized)
FOX-SI (Single) Set with Unistrut channel (galvanized)
