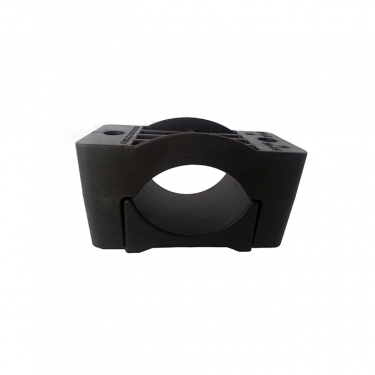

Serie FOX-SI

Cable clamp set including channel

Fast, efficient calculation, procurement and realisation.

The set consists of:
  • Desired type of FOX-SI cable clamp
  • Threaded rods (on correct length)
  • Nuts
  • Washers
  • Kwikstrut channel nuts
  • Unistrut channel on correct length
  • Mounting material Galvanised steel; optional Hot Dip Galvanised/ Stainless Steel
  • Protective caps for top of threaded rods and for channel
  • Nail plug set (including washers and bolts)
  • Shortcircuit proof fixation of one (1) single- or multiconductor low-, medium- or high voltage cable or tube with a diameter between 15 and 170 mm
  • Mechanical strength: up to 85,400 N
  • All SI models are stackable
  • Mounting torque: max. 5 Nm
  • Material: High Quality Black Polyamide, Fibreglass-Reinforced
  • Temperature range: -40° C to + 135° C
  • Excellent mechanical-, heat-, and chemical resistance, halogen free
  • Perfect fit due to well-thought-through design
  • Equipped with countersunk holes for nut/ bolt head
  • Also available as COMPLETE SET including Unistrut channel
  • Can also be mounted on Unistrut Racks
  • Quick delivery and advise on request!


Cable diameter
FOX-SI Ø 15-24
15-24 mm
FOX-SI Ø 24-38
24-38 mm
FOX-SI Ø 36-52
36-52 mm
FOX-SI Ø 50-75
50-75 mm
FOX-SI Ø 75-100
75-100 mm
FOX-SI Ø 100-130
100-130 mm
FOX-SI Ø 130-170
130-170 mm
